In the fields of mining, cement, power generation, and heavy machinery engineering, wear and tear on equipment components directly lead to decreased production efficiency and increased maintenance costs. As a high-performance anti-wear solution, the wear-resistant alumina ceramic dimple liner significantly extends the service life of equipment through its composite structural design. Typically manufactured from high-purity alumina (Al₂O₃) with a content of ≥92%, these liners are sintered using a high-temperature dry-pressing process, resulting in high density and a uniform microstructure .

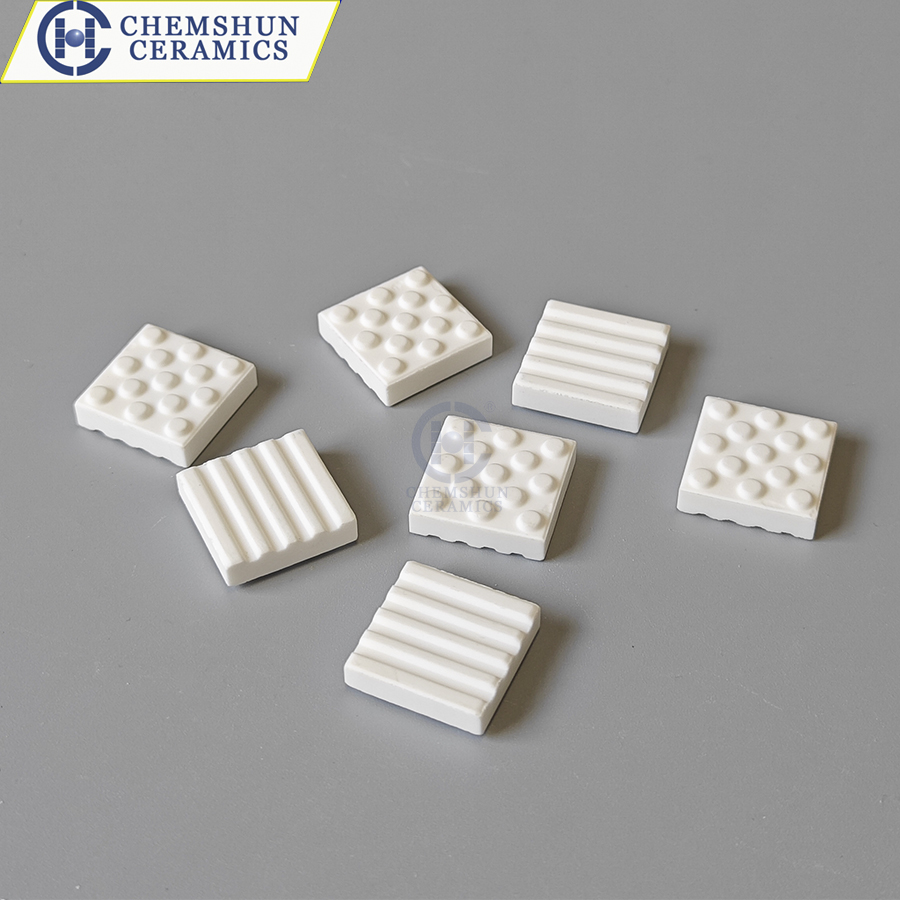

The core technology of this product lies in its “dimple” or “bump” geometric surface design and reliable physical properties. The dimple structure effectively increases the point contact pressure between the material and the liner surface, which helps break the air film between the material and the wall in conveying or chute systems, thereby improving material flow and preventing adhesion . In terms of performance data, 92% alumina ceramic typically achieves a Rockwell hardness (HRA) of over 80, a density of ≥3.6 g/cm³, and its wear resistance is 15 times or even higher than that of traditional high-manganese steel . Furthermore, high-alumina ceramic materials offer excellent high-temperature resistance and corrosion resistance, enabling them to adapt to complex industrial operating conditions .
In specific applications within engineering equipment, dimple liners are widely used for pulley lagging in belt conveyors, chutes, hoppers, and mill linings. The installation process directly impacts the protective effect; key steps include: sandblasting the base surface (achieving ISO Sa2.5 cleanliness), uniformly applying two-component polymer adhesive (controlling thickness to 1-2mm), and staggered bonding of the liners to ensure stress distribution . Due to their backside often being designed with grooves or dovetail slots, dimple liners form a mechanical lock with the adhesive, providing stronger resistance to detachment under high-speed material impact .
In summary, the use of wear-resistant alumina ceramic dimple liners is an economical and reliable choice for achieving long-term protection of engineering equipment. It not only resists material wear through high hardness but also enhances functionality through optimized surface geometry. For enterprises seeking operational stability and reduced overall operating costs, selecting products from reputable manufacturers that meet technical specifications (such as Al₂O₃ content, hardness, and water absorption) and adhering to standardized installation procedures are key to ensuring effective wear protection .
