The remarkable advantages of 99% alumina bulletproof ceramic

With its unique material properties, 99% alumina ceramic demonstrates considerable application potential in the field of bulletproofing, and has become an important choice among lightweight bulletproof solutions.

99% alumina ceramic possesses extremely high hardness and compressive strength. Its alumina purity is very high, and the density is extremely high. There are almost no pores or impurities inside. The hardness can reach above HRA90, and the compressive strength exceeds 3000 MPa. When a bullet impacts at high speed, the hard ceramic surface can instantly compress, deform, or even break the bullet head. At the same time, the high-density ceramic crystal structure can quickly disperse the impact force and consume the bullet’s kinetic energy, preventing the bullet head from penetrating the bulletproof plate, thus providing time for the subsequent buffer layer to absorb the energy.

In terms of lightweight design, 99% alumina ceramics have significant advantages. Compared with traditional metal bulletproof materials (such as steel plates), its density is only 3.9-4.0g/cm³, which is less than half of that of steel. Under the same protection level, the weight of bulletproof armor using 99% alumina ceramics can be reduced by 40%-60%, which is crucial for scenarios that are sensitive to weight such as individual protective equipment and vehicle armor. This can reduce the burden on users and improve mobility.

In practical applications, 99% alumina ceramics are usually combined with fiber composite materials (such as aramid, ultra-high molecular weight polyethylene) to form a composite bulletproof structure. The ceramic layer acts as the first line of defense, responsible for breaking the bullet head and dispersing the impact force. The fiber layer absorbs the remaining energy through deformation. The synergy of these two components can significantly enhance the overall protection effect. For example, in bulletproof inserts, 99% alumina ceramic sheets, after precise cutting and assembly, are combined with the fiber backplate. They can effectively resist the impact of pistol and rifle bullets and meet the protection standards of NIJ III and above.

Furthermore, the chemical stability and high-temperature resistance of 99% alumina ceramics also provide a guarantee for their use in bulletproof applications. It is not easily corroded by the environment and can maintain stable performance even in complex conditions such as humidity and high temperatures. Moreover, when a bullet impacts and generates local high temperatures (with instantaneous temperatures reaching several hundred degrees Celsius), it will not deform due to the high temperature, thus not affecting the protective effect and ensuring the long-term reliability of the bulletproof equipment.

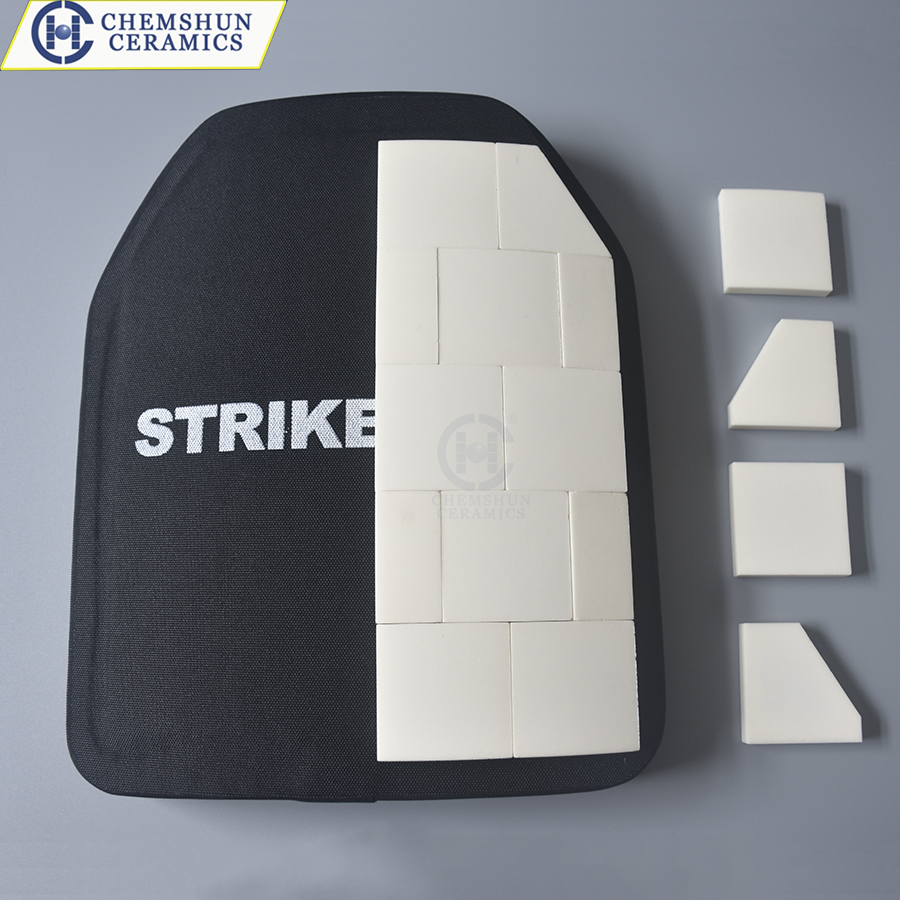

99% alumina bulletproof ceramic plate


Post time: Aug-07-2025
