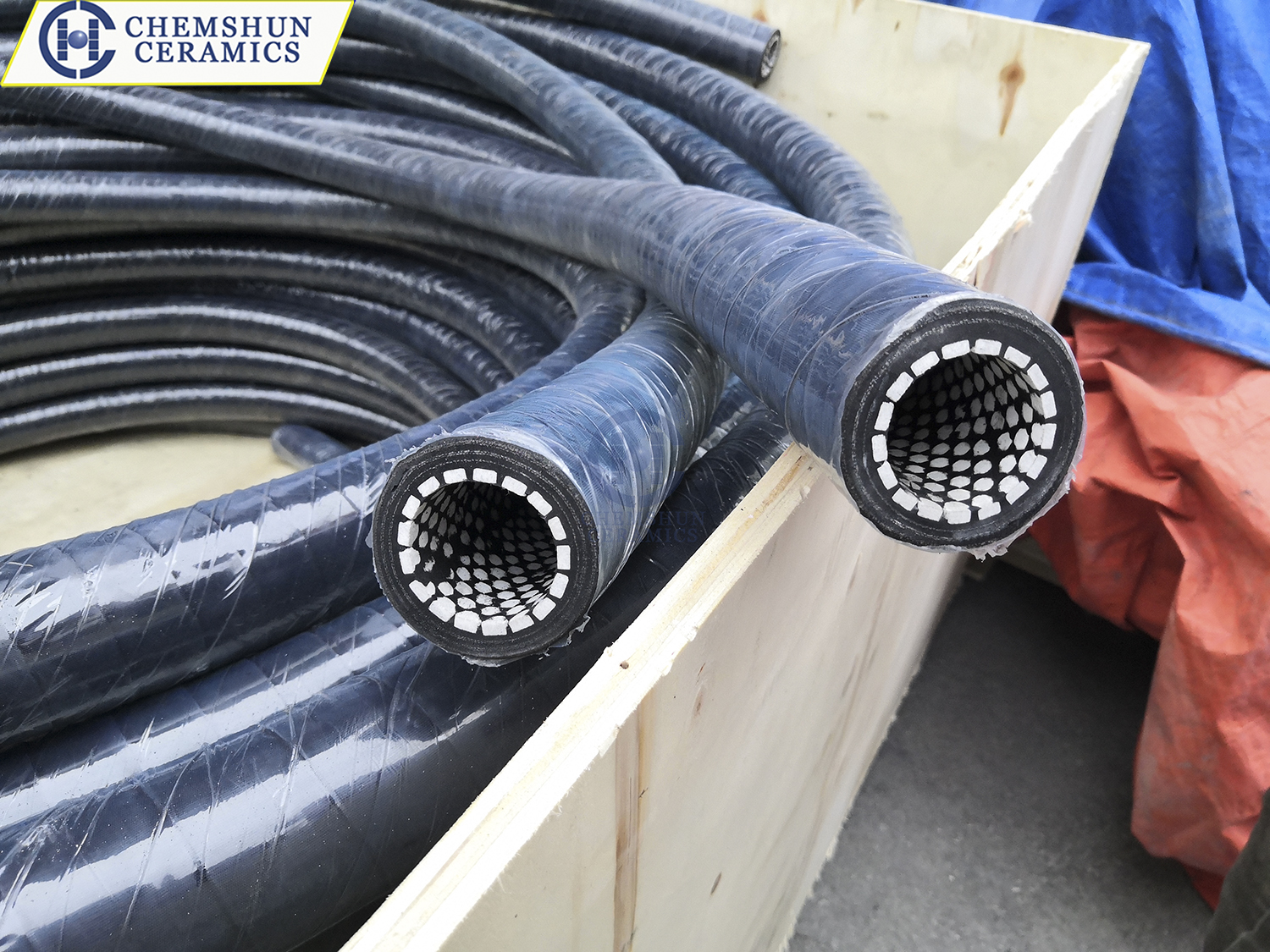

The wear-resistant alumina ceramic rubber hose is an industrial pipe product manufactured by combining high-hardness alumina ceramic tiles with a flexible rubber matrix through a vulcanization process. The embedded alumina ceramic (typically with an Al₂O₃ content of ≥92%) possesses extremely high hardness (Rockwell hardness HRA ≥88), exhibiting wear resistance more than ten times that of high-chromium cast iron . The outer rubber layer endows the hose with excellent flexibility and sealing properties, allowing it to bend and absorb impact vibrations under complex working conditions. This structural design effectively integrates the wear resistance of ceramics with the cushioning properties of rubber, making it primarily suitable for the transportation of high-wear media in industries such as mining, power generation, and cement .
Regarding performance parameters, the technical specifications of this product vary according to application requirements. The ceramic layer typically has a density of ≥3.6 g/cm³ and a bending strength exceeding 290MPa. While it can withstand high temperatures up to 1400°C, the long-term working temperature is generally controlled between -30°C and 150°C in continuous operation due to the temperature limitations of the rubber layer . The hose specifications are flexible, with nominal diameters ranging from 25mm to 1200mm, single lengths up to 20 meters, and working pressure grades between 1MPa and 4MPa . Furthermore, the ceramic tiles are often designed in hexagonal or circular shapes and are precisely arranged and vulcanized to ensure a smooth inner wall with low fluid resistance .
Wear-resistant alumina ceramic rubber hoses are widely used in solid-liquid-gas multiphase flow material conveying systems. In coal-fired power plants, they are employed for the pneumatic conveying of fly ash and pulverized coal. In the steel industry, they are used for injecting pulverized coal and transporting iron ore concentrate . In the chemical sector, leveraging the corrosion resistance of ceramics, these hoses can convey corrosive slurries containing acids, alkalis, and salts. Additionally, in port dredging and concrete pumping operations, this pipeline, with its dual advantages of impact resistance and wear resistance, significantly extends the maintenance cycle and service life of the piping system, thereby reducing overall operational and maintenance costs .
Post time: Mar-07-2026
