Ceramic Elbow Bend Pipe

Short Description:

90 Degree ceramic elbow bend pipe is mainly lined in steel pipeline system . as abrasion resistant ceramic liner pasted in the inner wall of steel pipe.


Product Detail

Product Description

Ceramic elbow cylinders and segments is made from ISO pressed alumina, which is a extremely dense ceramic material that has remarkable resistance to both sliding and impact abrasion. Ceramic cylinder and segments offer durable wear protection for straight steel pipes and bends. Our special products are engineered and designed to related projects of our customers. Due to superior wear resistant properties of high protection , ceramic cylinder and segments is provided even at small wall thicknesses, offering weight-saving solutions for pipe transport systems. Chemshun wear ceramic cylinder size range from 10mm to 500mm , pre-engineered ceramic cylinder lined steel composite pipe also can be offered .

Pipe lining size:

TYPE ID (mm) OD (mm) Length (mm)
Ceramic pipe 45 60 50
Ceramic pipe 51.5 64 50
Ceramic pipe 62 77 50
Ceramic pipe 65 85 92
Ceramic pipe 79.5 96 50
Ceramic pipe 80 100 300
Ceramic pipe 97 117 300
Ceramic pipe 100 120 300
Ceramic pipe 102 120 300
Ceramic pipe 125 145 300
Ceramic pipe 135 155 300
Ceramic pipe 150 170 300
Ceramic pipe 150 175 300
Ceramic pipe 150 180 300

Remarks: The bend of same ID and OD could be provided if customer can provide the radius and bend degree



Pipe advantage:

  • Long lifetime and maintenance free operation
  • NO operation interruption or production losses
  • NO contamination of the conveyed materials due to abrasion, mixture or oxidation
  • Physiologically harmless, suitable for food products
  • Smooth surface to achieve good flowability and to avoid plugs
  • No spilled material to clean up

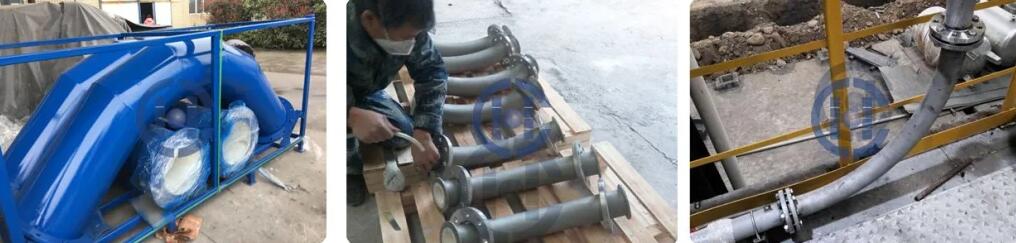

Bend pipe application :

https://www.ceramiclinings.com/ceramic-elbow-bend-pipe-product/

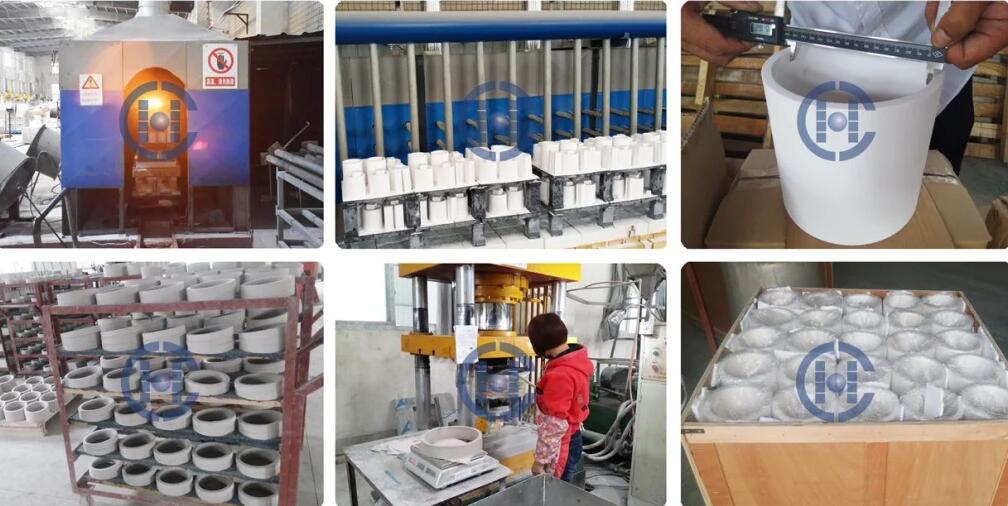

Pipe production Process :

https://www.ceramiclinings.com/ceramic-elbow-bend-pipe-product/
