Ceramic Lined Elbow Bend Pipe With Flange

Short Description:


Product Detail

Product Description :

Chemshun alumina ceramic lined composite steel pipe not only has  steel pipe characters of  high-strength,good toughness, impact resistance, good weld-ability, but also has corundum ceramics characters of high hardness, high wear resistance, corrosion resistance, heat resistance.  which overcome disadvantages of steel low hardness, poor wear resistance and ceramics poor toughness, therefore, ceramic lined pipes have comprehensive property of excellent wear resistance , hear resistance , corrosion resistance ,mechanical shock and thermal shock etc , it is the ideal pipeline of conveying sand , stone , coal , ash, molten aluminum etc particles and corrosive medium,Chemshun Ceramics offers sophisticated design and engineering capabilities of both standard and custom wear linings, installation and project management, as well as abrasion audits of used wear linings.

Details:

Size: DN40-DN600
Wall Thickness: 3-10mm
Housing Material: Seamless Carbon Steel
Inner Material: 95% Alumina Ceramic
Ceramic Thickness: 3 to 6 mm
Normal Operation Velocity: 20-35m/s
Normal Operation Temperature: -50—800degree

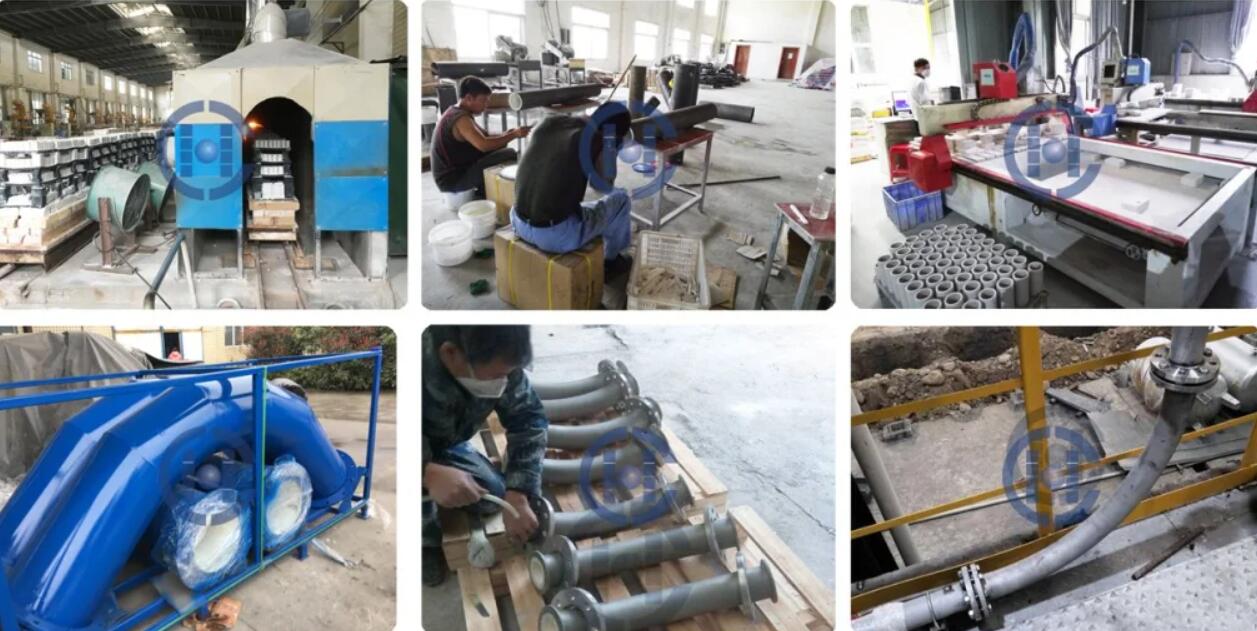

Workshop Show:

https://www.ceramiclinings.com/ceramic-lined-elbow-bend-pipe-with-flange-product/

chemshun pipe Size available:

Chemshun ceramics offer ceramic pipe liner and ceramic pipe tile liner for pipe
Use ceramic pipe ID: 10mm~500mm Thickness and length according to customer’s needs
Use pipe tile liner Any pipe size available Thickness : 13mm , 25mm, 50mm etc
Note: more sizes and customized size acceptable



erformance Index 92 series 95series
Al2O3 (%) ≥ 92 ≥ 95
Moh’ s Hardness 9 9
Water Absorption Rate(%) < 0.01 < 0.01
Flexural strength, 20C, Mpa 275 290
Bending
strengh(Mpa)
255 275
Bulk density(g/cm 3 ) ≥   3.60 ≥   3.65
