Wear Resistant Rubber Ceramic Hose

Short Description:

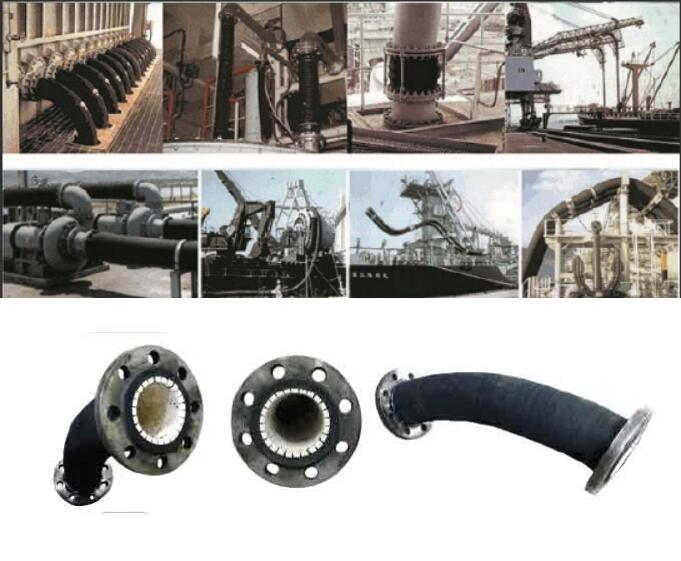

Chemshun ceramic rubber hose is one of good ideal conveyor which are widely used in highly aggressive environments for wear resistance and anti-impact. Embedding the high alumina ceramics into the rubber, the ceramic hose could bear the hard materials of pipe friction stead of rubber, it is widely used in dredging mining, port, power plant, steel plant and cement plant. This flexible hose is lined with ceramic cylinder for wear resistance and easily curved in any direction.
We can produce hose according to customer’s requirement,Our new ceramic rubber hose has the circular disk shaped ceramic tipe compared with the conventional ball shaped ceramic tip and shows several times higher abrasion resistance, contact with us soon chemshun.en.made-in-china.com.

Send email to us

Product Detail

Introduction :

Chemshun wear resistant rubber ceramic hose is a ceramic-lined rubber hose that provides exceptionalresistance to abrasion, corrosion, and high temperatures. The ceramic lining is embedded in the rubber hose, which makes it more durable and flexible than conventional metal hoses. This flexible design allows it to bend effortlessly around corners and obstacles without causing undesired wear and tear on the hose.

Chemshun Ceramics Hose Advantages

1) High hardness.
2) Much flexible and curved because of rubber combined.
3) Excellent wear resistance and anti-impact.
4) Various hose size available for many application.
5) Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.

Application industry

1) Mining industry
2) Cement industry
3) Coal handling industry
4) Steel Plant
5) Port industry
6) Power plant

Chemshun rubber ceramic hose size

Diameter		ID	OD	Wear bending	Length	Pressure
inch	mm	mm	mm	Mpa	m	Kg/cm2
1	25	25.4	42	300	10	10
1 1/4	32	31.8	50	380	10	10
1 1/2	38	38.1	56	480	10	10
2	50	50.8	72	600	20	10
2 1/2	65	63.5	94	780	20	10
3	75	76.2	105	900	20	10
3 1/2	90	88.9	120	1080	20	10
4	100	101.6	140	1200	20	10
5	125	127	160	1500	20	10
6	150	152.4	190	1800	20	10
8	200	200	235	2400	10	10
10	250	250	290	3000	10	10
12	300	300	350	3600	10	10

Service

We accept custom orders.
If you want to know more product information, please feel free contact us and we’ll afford you the most suitable product and best service!
